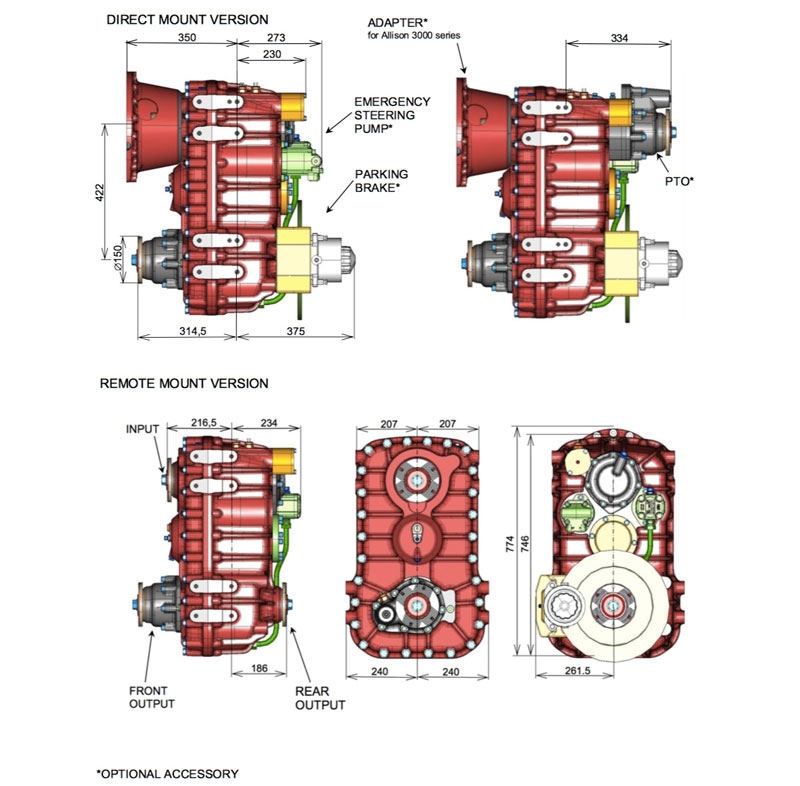

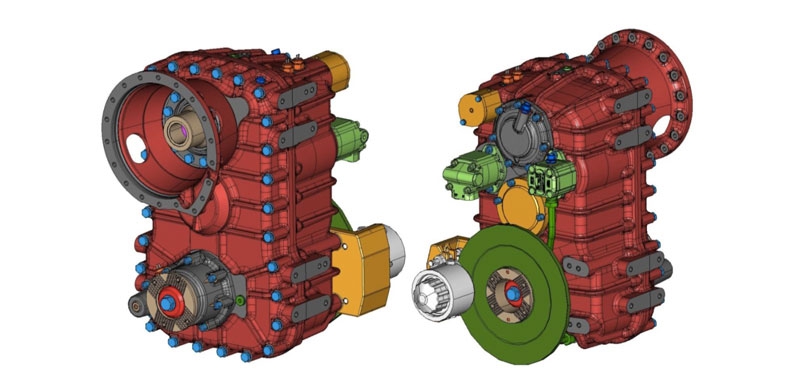

TYPE | OPS-0061 DIRECT MOUNT TRANSFER CASE

Max Input Torque 16.000 Nm
Maximum Input Speed version V1  3 500 RPM
Total Offset Distance 422 mm
High Speed Ratio 1,3
Low Speed Ratio 2,27
Split torque differential Ratio 01:02
Shifting air operated, electrical signal in neutral and low speed position air pressure 6,5÷8,5 bar
Lubrication – internal oil pump, possibility of external cooling circuit
Oil Capacity 7,5l – according oil level plug
Oil Specification SAE 75W-90, Multi-Purpose Gear Oil,
API-GL-5 or MIL-L-2105C or CD
Maximum Working Temperature 120°C
Weight 290 – 410 kg – depend on configuration
Flanges Input : KV150
Front Axle : KV150
Rear Axle : KV150
PTO : KV150

* OPTIONAL ACCESSORIES
Direct mount provision For Allison 3000
Parking brake option Without parking Brake, FSG 110; 2xFSG 110
Emergency steering pump option Yes / No
Without Differential Air operated shifting of 4x4; 4x2 mode
PTO Maximum Nominal Torque: 5000 Nm
Maximum Torque, Static Value: 7000 Nm
Air operated engage, electric signal in “ON” position

Description :

Direct mount transfer case, Allison mount PTO, Direct allison gearbox mount transfer case, . Optima DrivesDirect mount transfer case, Allison mount PTO, Direct allison gearbox mount transfer case, .
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
