PRODUCTOS | Caja De Transferencia

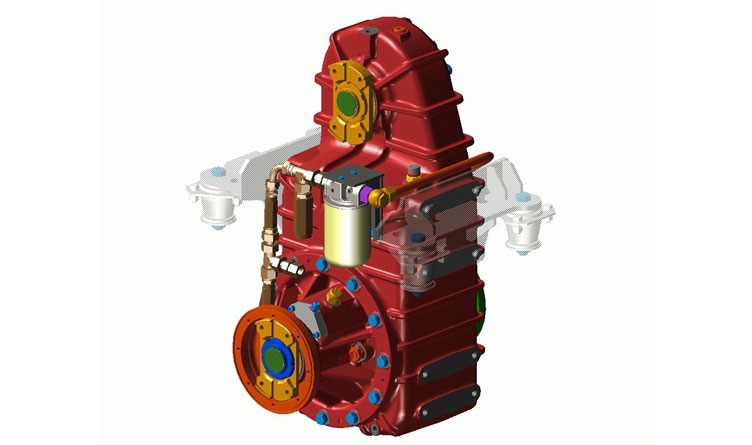

TYPE | OPS-1002 TRANSFER CASE

Max Input Torque 20.000 Nm
Maximum Input Speed version V1  20 000 Nm

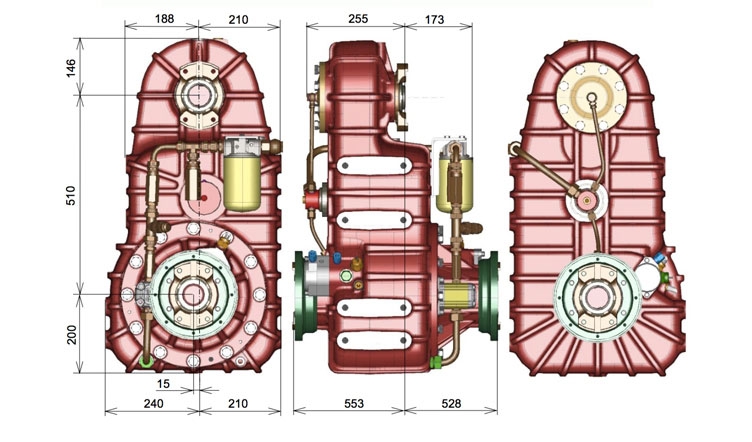

Total Offset Distance 510 mm
High Speed Ratio 0,87
Low Speed Ratio 1,69
Split torque differential Ratio WITHOUT
Shifting air operated, electrical signal in high and low speed position air pressure 6,5÷8,5 bar
Lubrication – internal oil pump, possibility of external cooling circuit
Oil Capacity 7,5 l
Oil Specification SAE 75W-90, Multi-Purpose Gear Oil,
API-GL-5 or MIL-L-2105C or CD
Maximum Working Temperature 120°C
Weight 315 kg
Flanges Input : 8,5C
Front Axle: 8,5C
Rear Axle: 8,5C

Description :
Esta caja de cambios es adecuada para vehículos 4x4, 8x8.

transfer case for military vehicles, transfer case for armored vehicles. Optima Drivestransfer case for military vehicles, transfer case for armored vehicles.
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
