PRODUCTOS | Caja De Transferencia

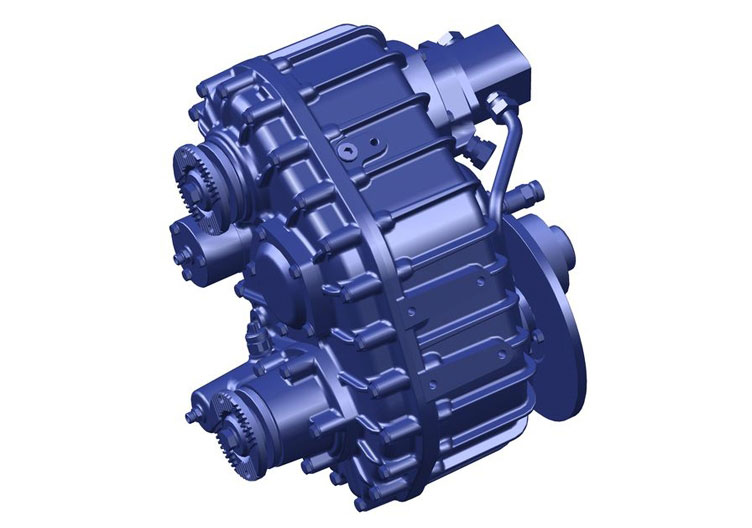

TYPE | OPS-0001 TRANSFER CASE
| Max Input Torque | 10.000 Nm |
| Maximum Input Speed version V1 | 3 450 RPM |
|---|---|
| Total Offset Distance | 298,2 mm |
| High Speed Ratio | 1,11 |
| Low Speed Ratio | 1,94 |
| Split torque differential Ratio | 34:66 with Lock |
| Shifting | air operated, electrical signal in high and low speed position air operated, electrical signal in differential lock on position air pressure 6,5÷8,0 bar |
| Lubrication – internal oil pump, possibility of external cooling circuit | |
| Oil Capacity | 3,8 l – according oil level plug |
| Oil Specification | SAE 75W-90, Multi-Purpose Gear Oil, API-GL-5 or MIL-L-2105C or CD |
| Maximum Working Temperature | 125°C |
| Weight | 162 Kg |
| Flanges | Input : KV120 |
| Front Axle : KV120 | |
| Rear Axle : KV120 | |
| Parking Brake Type | KNOTT FSG90 102 709 |
| Disc Wheel Diameter | 290 mm |
Description :
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
