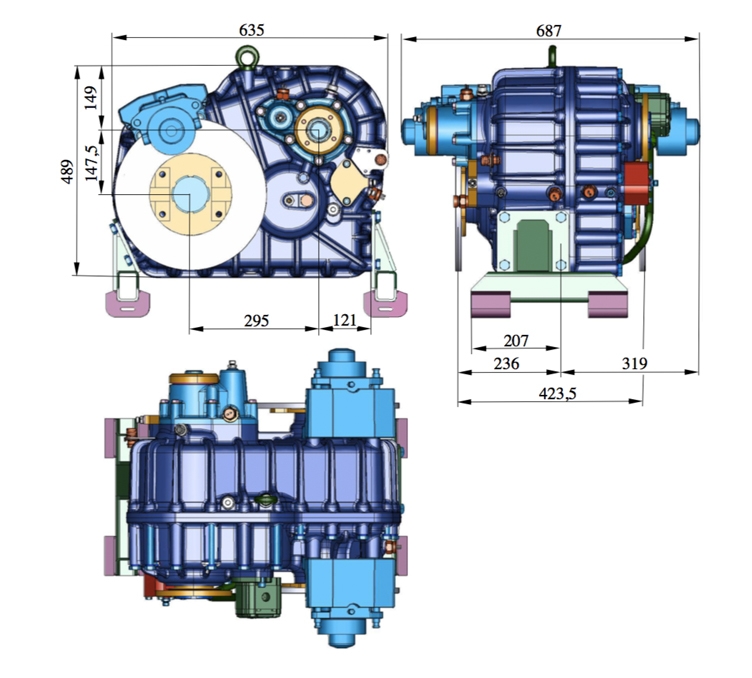

TYPE | OPS-4002 TRANSFER CASE

Max Input Torque 20.000 Nm
Total Offset Distance X=147.5mm
Y=295mm
High Speed Ratio 0,78
Low Speed Ratio 1,69
PTO Ratio 1
Split torque differential Ratio 1,1
differential lock, electrical signal in differential lock position
Shifting air operated, electrical signal in high and low speed position air pressure 2,5÷8,5 bar
Lubrication – internal oil pump, possibility of external cooling circuit
Oil Capacity approx. 7,5 l
Oil Specification SAE 75W-90, Multi-Purpose Gear Oil,
API-GL-5 or MIL-L-2105C or CD
Maximum Working Temperature 130°C
Weight approx. 320 kg
Parking Brakes: on Front Output Shaft, on Rear Output Shaft

PTO DATA
Maximum Nominal Torque 1 000 Nm
Air operated shifting, electrical signal in PTO engaged position
TYPE | OPS-4002 TRANSFER CASE Optima Drives
